Steel Media Burnishing Guide: How It Creates Mirror Shine and When Not to Use It

Steel finishing media • Pins, balls & discs • Burnishing process, compound pairing and limits

Steel media is unique in mass finishing: it is the only media that polishes almost entirely without cutting. Hardened stainless pins, balls, and discs rub against parts under compound pressure, compressing micro-peaks into a dense, bright surface — the burnished look buyers associate with quality hardware, watch parts, and jewelry findings. Used correctly it delivers shine no ceramic or plastic media can match. Used wrongly it smears soft metals, hides defects, and rusts your machine. This guide covers both sides.

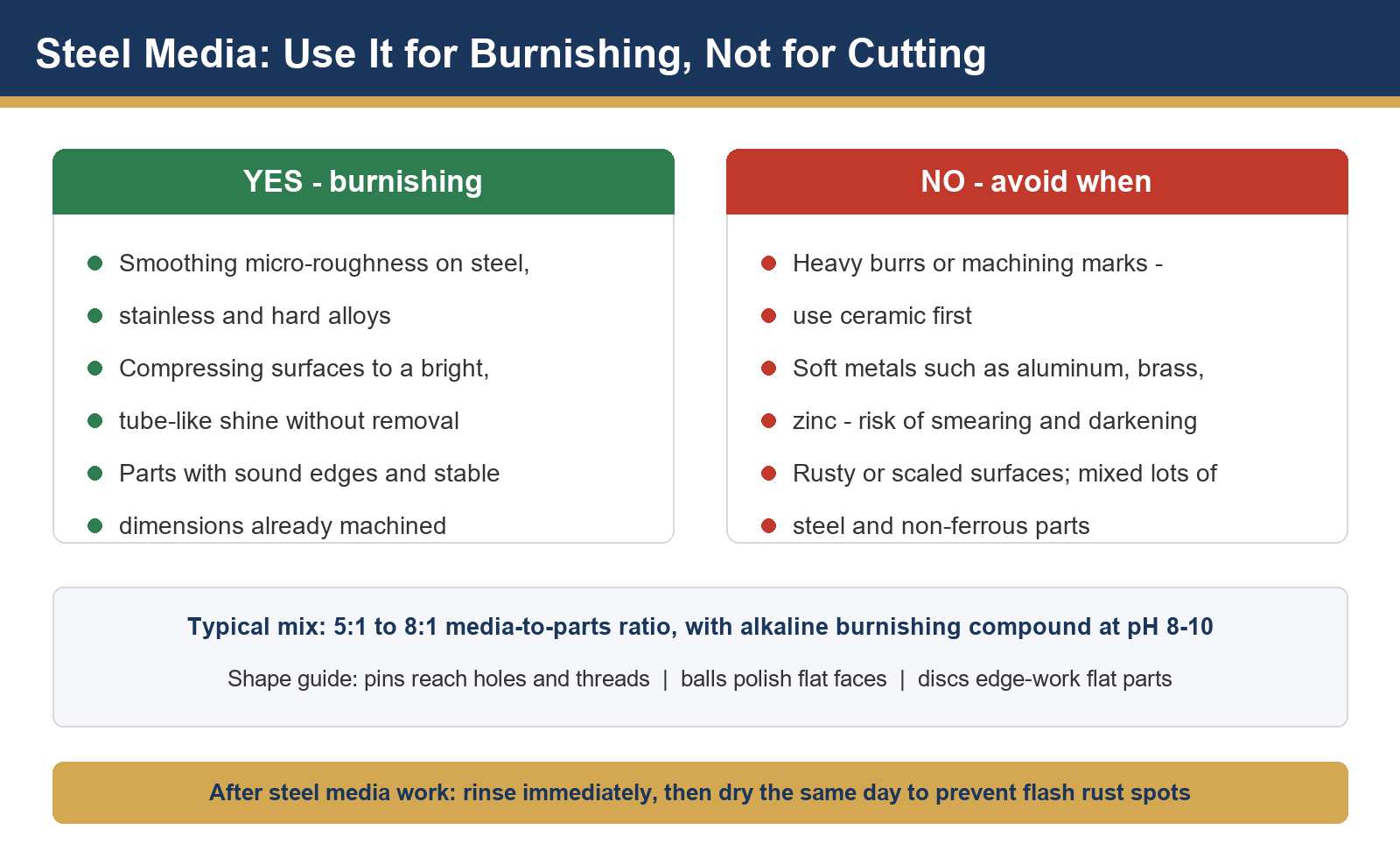

Steel media decision chart showing when to use burnishing and when to avoid steel media — When steel media helps — and the three situations where it is the wrong choice

Core idea. Steel media does not remove metal; it re-distributes it. That is why its shine is brilliant but its correction ability is nearly zero — every burr, mark, or machining line you want gone must be removed by an earlier cutting stage.

1. What Steel Media Actually Does

Burnishing is a surface-compression process. Under the combined pressure of hundreds of hardened steel contacts per minute and an alkaline burnishing compound, surface asperities flow sideways and flatten. The result is a reflective, work-hardened surface with no material loss and virtually no dimensional change — which is exactly why steel media is preferred for precision parts where tolerances cannot move.

2. Shapes and Sizes of Steel Media

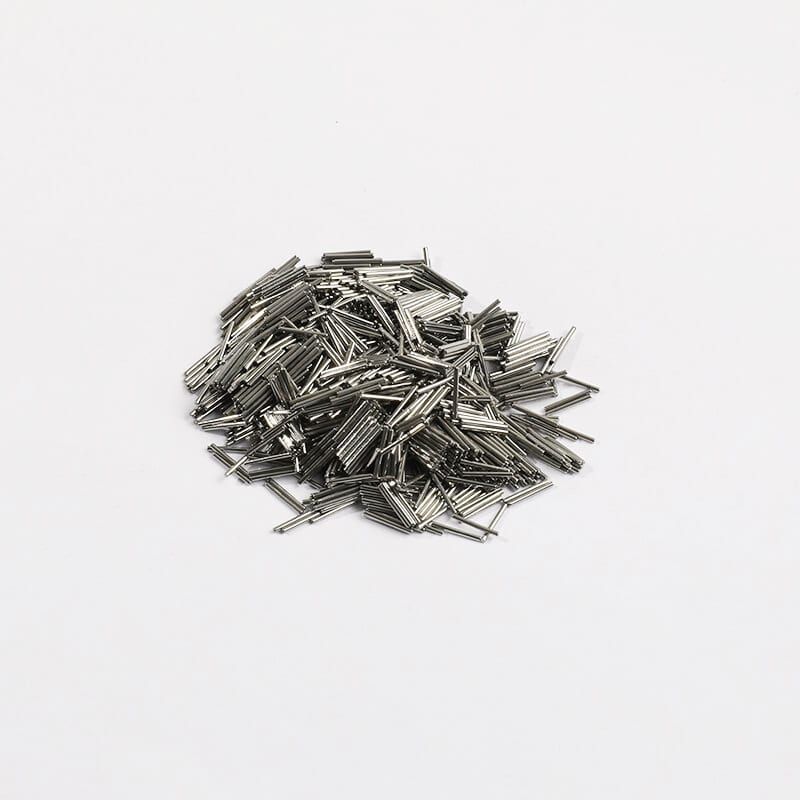

304 stainless steel pin media for magnetic and vibratory finishing on white background — Stainless steel pin media — the standard choice for magnetic finishers and intricate parts

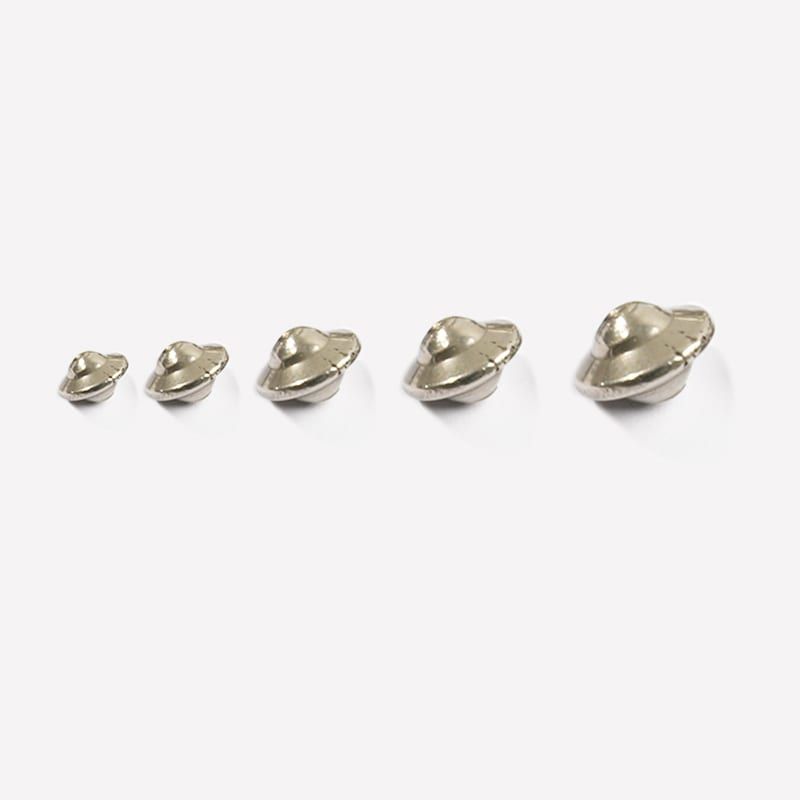

Dish shaped ball burnishing steel media in five graduated sizes — Dish-ball steel media in five sizes — larger shapes burnish flat faces faster

Shape	Best For	Watch Out
Pins (needles)	Threads, holes, intricate channels — typical in magnetic finishers	Can jam into very fine features below 0.5 mm
Balls / dish balls	Flat faces, ring bands, coin and logo surfaces	Rolls away from edges; poor on recesses
Discs / wedges	Flat stampings, blade faces, edge work	Sharp disc rims can leave micro-lines on soft alloys

3. Compound Pairing and Process Settings

Alkaline burnishing compound: keeps steel bright, suspends soils, and provides lubricity. A mildly alkaline solution is the standard starting point.
Media-to-parts ratio: begin around 5:1 to 8:1 by volume for bulk parts; higher ratios protect delicate parts from part-on-part contact.
Cycle length: burnishing works fast once surfaces are pre-smoothed; run short cycles and inspect rather than committing to long runs.
Rust discipline: never let wet steel media sit idle overnight without compound circulation — free water causes flash rust that transfers to the next batch.

4. Where Steel Media Shines (Literally)

Watch cases and bracelets after ceramic pre-finishing.
Jewelry findings, chains, and castings before plating.
Machined stainless hardware needing a uniform satin-to-bright finish.
Knife blades and tool faces where dimensional stability matters.

5. When NOT to Use Steel Media

Three failure modes. (1) Soft metals — aluminum, brass, zinc smear and darken under steel pressure instead of brightening. (2) Rough surfaces — burrs and deep marks survive burnishing unchanged; cut them with ceramic first. (3) Mixed lots — steel media plus loose non-ferrous parts in one load leads to contamination, embedded particles, and dull patches.

6. Maintenance and Care of Steel Media

Steel media lasts for years when kept clean. Rinse after each batch, store submerged in compound solution or fully dried, and re-clean periodically with a media cleaner compound when shine output drops. Rusty or blackened media must be cleaned before reuse — running parts with dirty steel transfers stains instantly.

7. Quick Selection Checklist

Surface already smooth? If not — add a ceramic stage first.
Part material harder than brass? Good candidate. Softer — reconsider.
Need reach into threads and channels? Pins, ideally in a magnetic finisher.
Need maximum flat-face gloss? Dish balls in a vibratory bowl.

Browse our steel finishing media range, see how pins work inside our magnetic finishing machines, or revisit our guide on preventing part-on-part damage when loading valuable batches.
